Bucket Handle making machine

Name: Bucket Handle making machine
Brand: BURHANI ENTERPRISES
Price: 13000.0 USD
Availability: InStock

Price 13000.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Bucket Handle making machine Specification

Product Type
Bucket Handle Making Machine

Wire Material
Mild Steel / Stainless Steel / Galvanized Iron

Inlet Diameter
2 - 5 mm

Outlet Diameter
2 - 5 mm

Voltage
380V / 415V, 3-Phase, 50-60Hz

Power
3 - 7.5 kW

Dimension (L*W*H)
Approx. 1800 1000 1500 mm

Usage
Automatic production of bucket handles with or without plastic grip

Weight
1200 - 1500 kg

Color
Standard Industrial

Feeding Mode
Automatic wire feeding

Production Speed
30 - 40 handles per minute

Min Handle Length
150 mm

Material Handling
Roll or straight-line wire feed

Cutting Type
Automatic cutting

Control System
PLC Controlled

Grip Attachment
Automatic plastic grip fitting (optional)

Forming Type
Automatic bending and pressing

Operation
User-friendly interface

Max Handle Length
350 mm

Lubrication System
Automatic

About Bucket Handle making machine

1)Bucket Handle Machine:

2)Similar to Bucket handle we can supply Roller paintbrush machines also.

UAE:

For both above machines CHINESE SERVICE AND SPARES available in UAE.

INDIA.

Installation video and original spares service available in India.

High-Speed Automatic Production

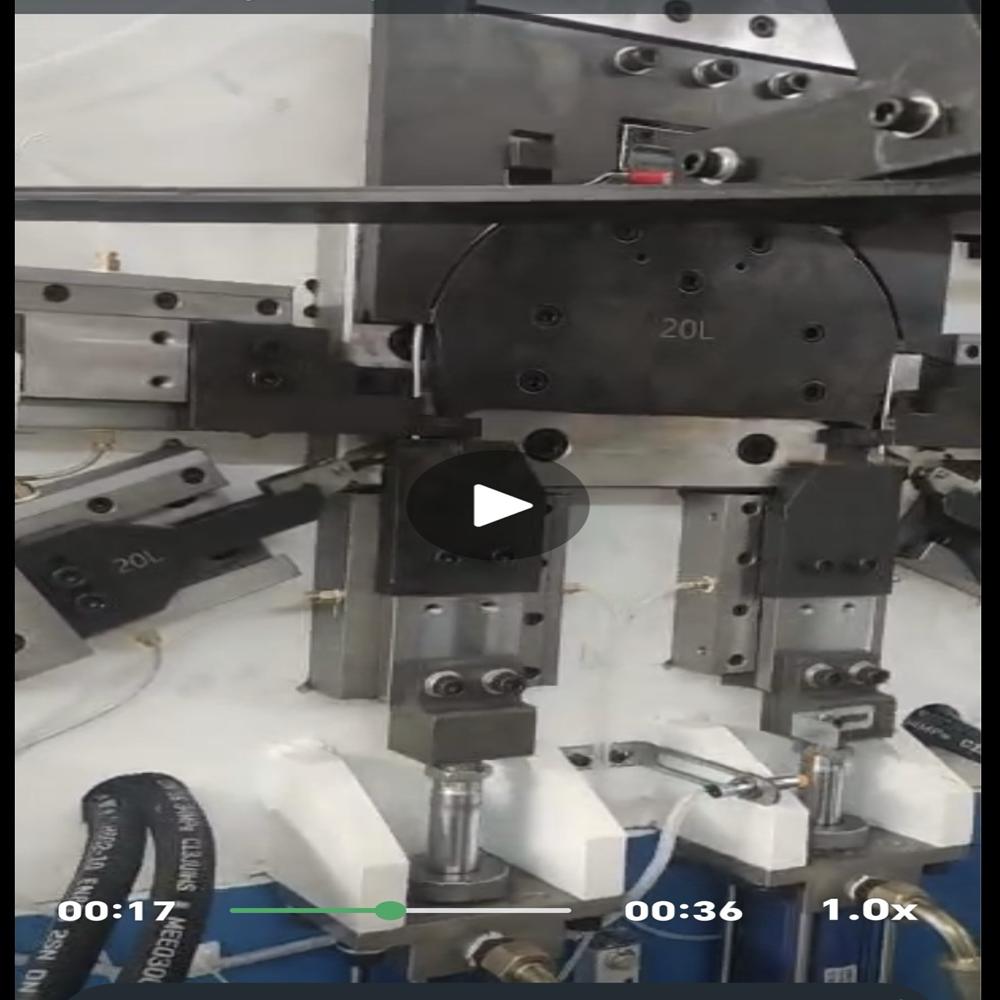

Achieve exceptional productivity with fully automatic bending, pressing, and cutting operations, delivering up to 40 handles per minute. The system's PLC controls ensure precision and consistency, while the user-friendly interface keeps operation simple and efficient.

Versatile Material Handling

This machine works seamlessly with mild steel, stainless steel, and galvanized iron wires, accepting material from rolls or straight-line feeds. With an inlet and outlet wire diameter capacity of 2 to 5 mm, it supports varied bucket handle specifications to meet diverse industry needs.

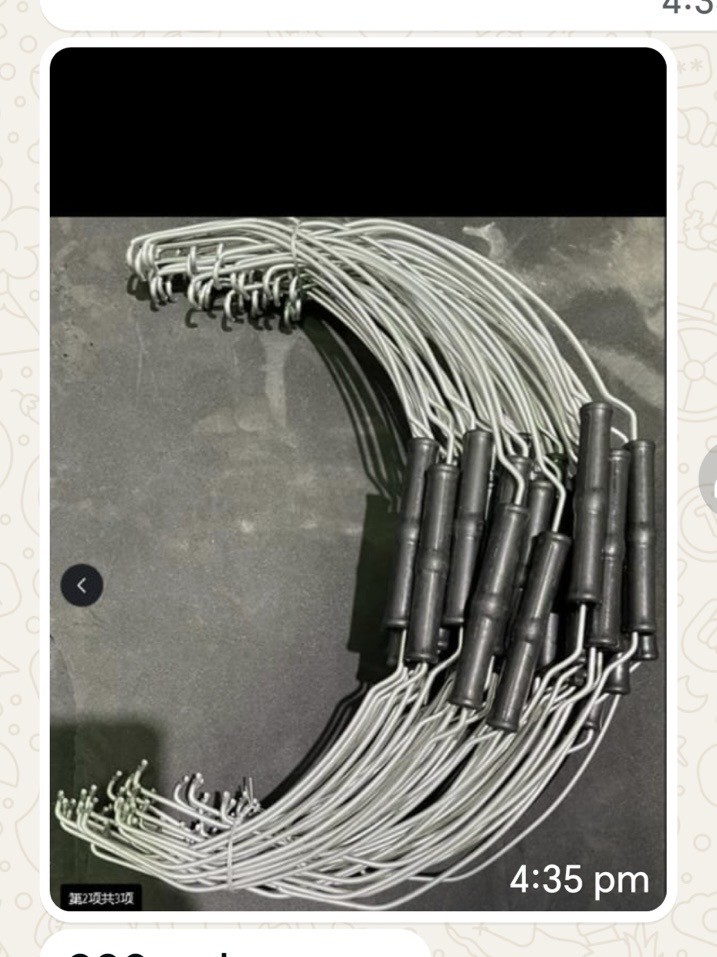

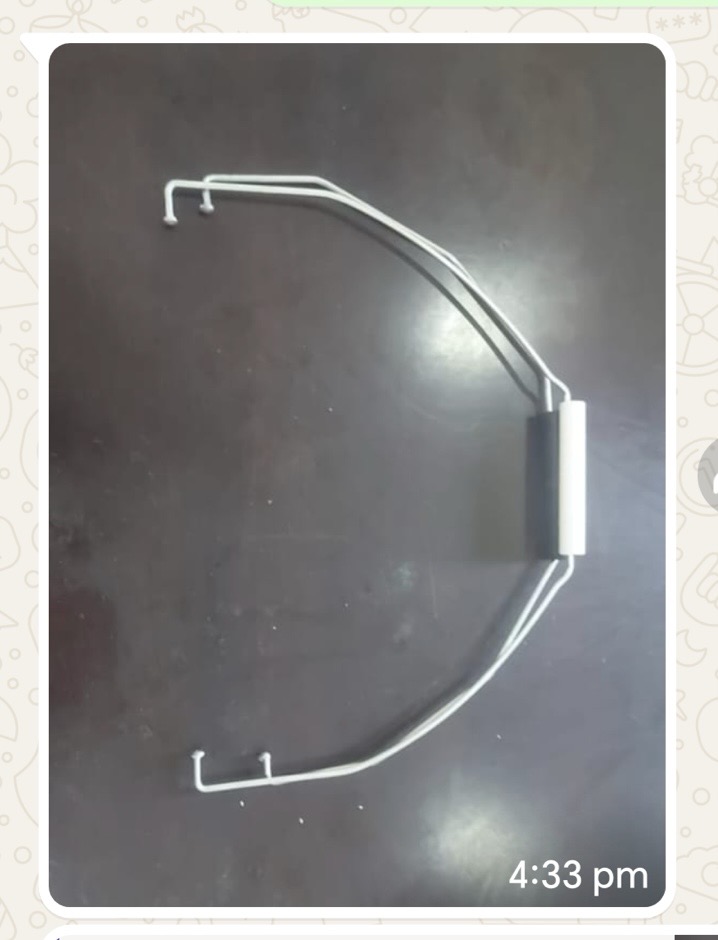

Optional Automatic Plastic Grip Attachment

For added convenience, the machine offers an optional automatic plastic grip fitting. This integrated feature allows you to produce finished handles with plastic grips in a single operation, reducing manual labor and improving overall efficiency.

FAQ's of Bucket Handle making machine:

Q: How does the bucket handle making machine automate the production process?

A: The machine utilizes a PLC-controlled system that handles automatic wire feeding, bending, pressing, and cutting. It can also automatically attach plastic grips if the optional feature is enabled. This automation significantly reduces manual involvement while ensuring high output and consistent quality.

Q: What types of wire materials and diameters are suitable for this machine?

A: The machine is compatible with mild steel, stainless steel, and galvanized iron wires. It accommodates wire diameters ranging from 2 to 5 mm at both the inlet and the outlet, making it adaptable for different bucket handle requirements.

Q: When is it beneficial to use the optional automatic plastic grip attachment?

A: The automatic plastic grip fitting is ideal when producing bucket handles that require plastic grips. Enabling this option streamlines the process, allowing handles to be manufactured and finished in a single cycle with minimal manual handling.

Q: Where can this machine be installed and what are its electrical requirements?

A: The machine is suitable for installation in industrial manufacturing settings and requires a 3-phase power supply at either 380V or 415V, with a frequency of 50-60Hz. Its compact dimensions facilitate straightforward integration into existing production lines.

Q: What is the maximum and minimum handle length the machine can produce?

A: The bucket handle making machine can produce handles with lengths between 150 mm (minimum) and 350 mm (maximum), allowing customization for various bucket sizes.

Q: How user-friendly is the operation and maintenance of the machine?

A: It features a user-friendly interface for easy operation. The automatic lubrication system helps minimize maintenance needs, while robust construction ensures reliable long-term use.

Q: What are the key benefits of using this machine for bucket handle production?

A: Key advantages include high production speed, reduced manual labor, consistent handle quality, versatile material compatibility, and the option to integrate automatic plastic grip attachment, all of which contribute to greater operational efficiency and cost savings.
